Solar Mat for Pool Water Heating Intex 28685

Solar Mat for Pool Water Heating Intex 28685

SOLAR PANEL FOR WATER HEATING

• Heats water by 3-5°C using sunlight
• Possibility to connect multiple mats to increase water temperature
• Dimensions 120x120cm

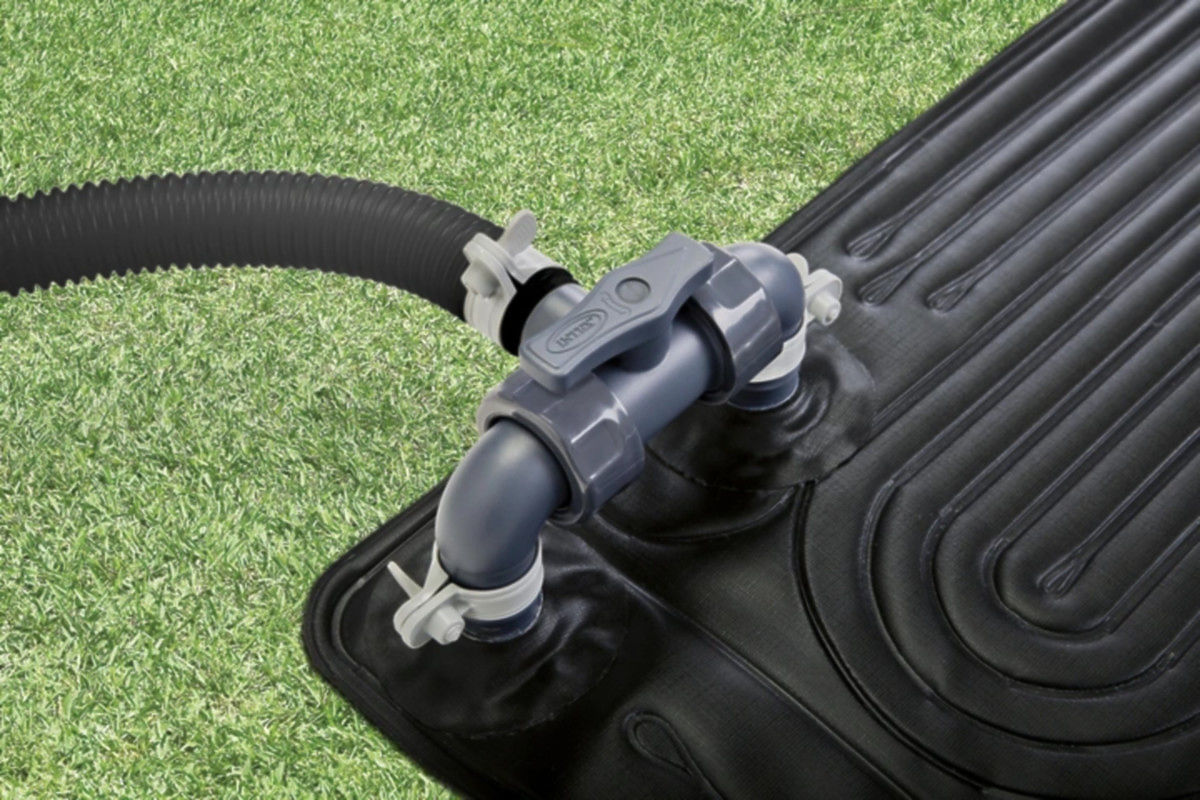

• Special valve allowing to bypass the mat
• Designed for pumps with a flow rate from 2006 to 7500 l/h
• Sturdy construction
• High efficiency
• Product by Intex

FREE, ECO-FRIENDLY WATER HEATING

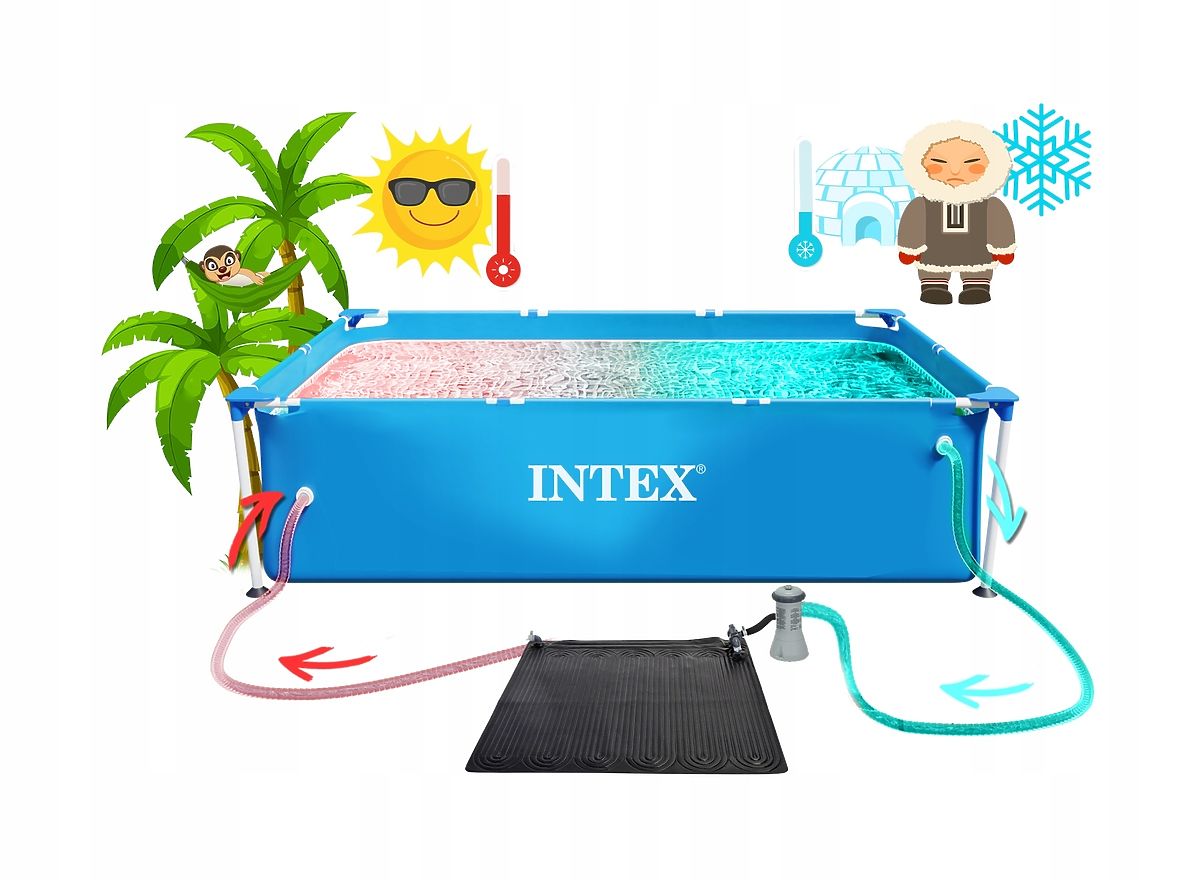

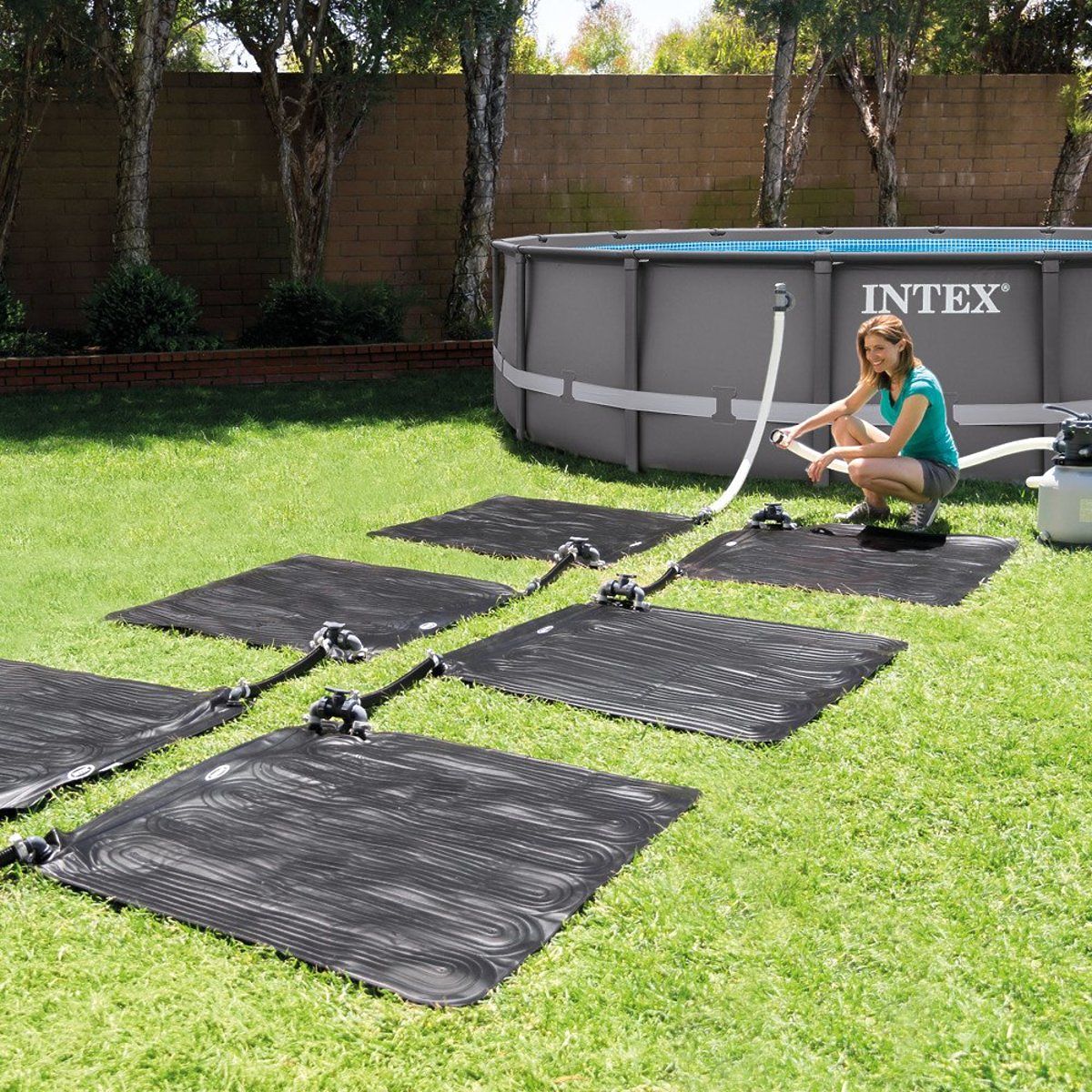

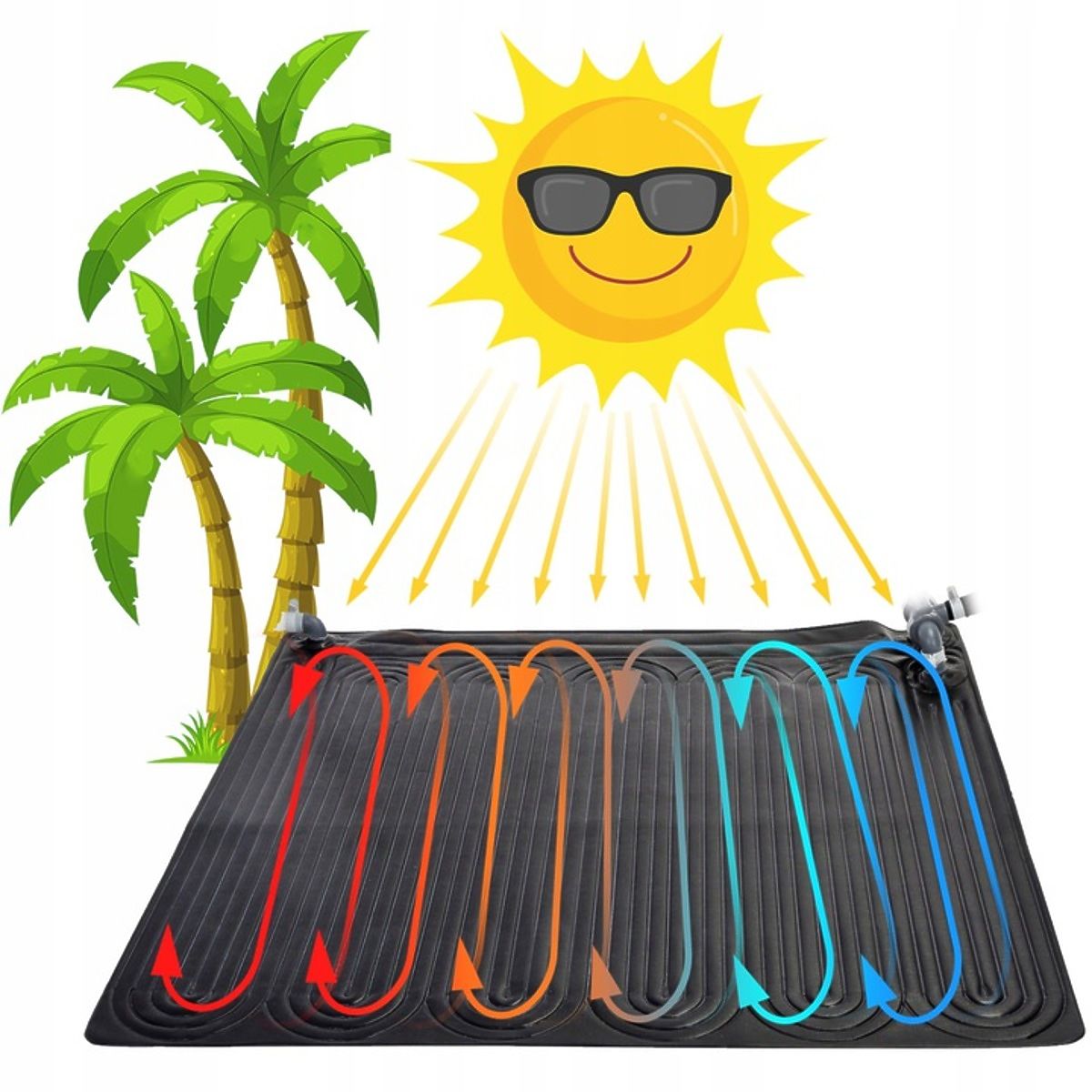

By connecting a single solar mat to your pool pump, you can increase the water temperature by up to 5 degrees. The solar cells transfer the heat obtained from solar energy to the water flowing through them. The mat measures 120x120cm and its important advantage is the possibility to connect several mats into one system. This way, you can heat the water in your pool by several degrees completely free of charge during sunny weather.

MAT CONNECTION

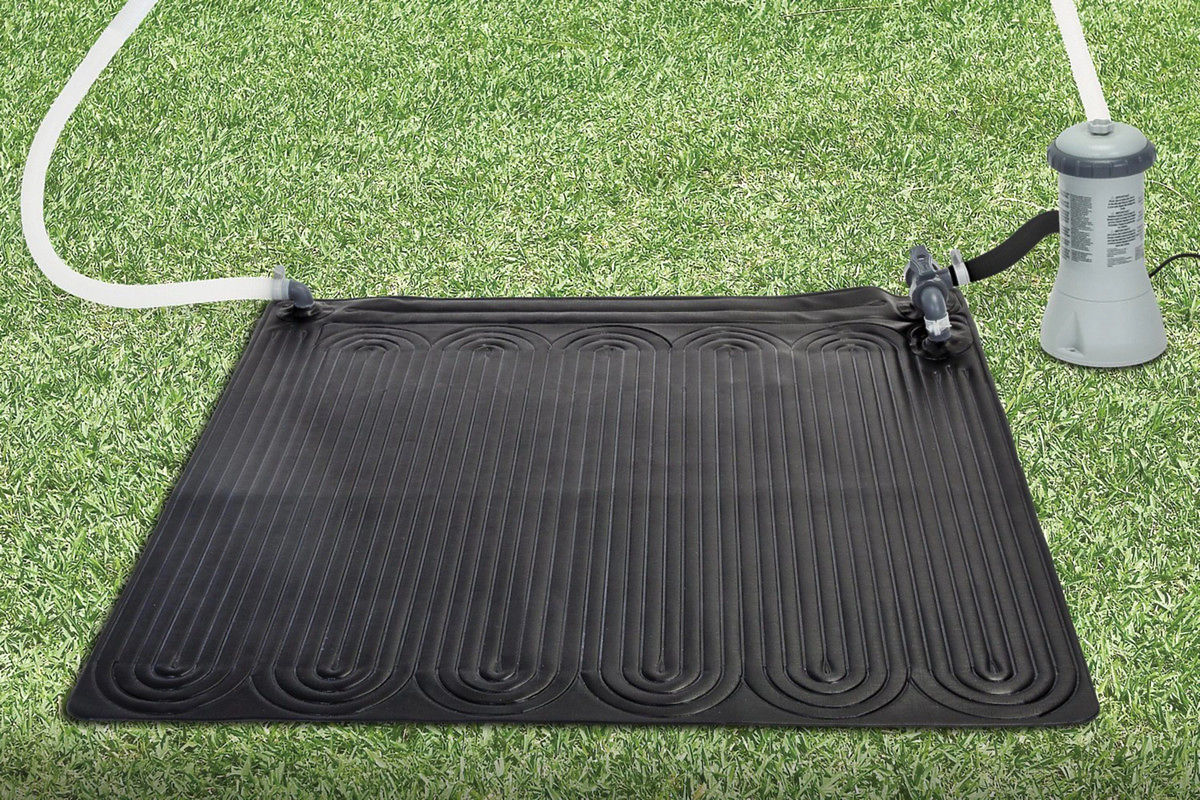

The mat allows connection of hoses with a diameter of 32mm, but it is also equipped with adapters to connect hoses with a diameter of 38mm. For its proper function, it is necessary to connect a pump with a flow rate not exceeding 7500 l/h.

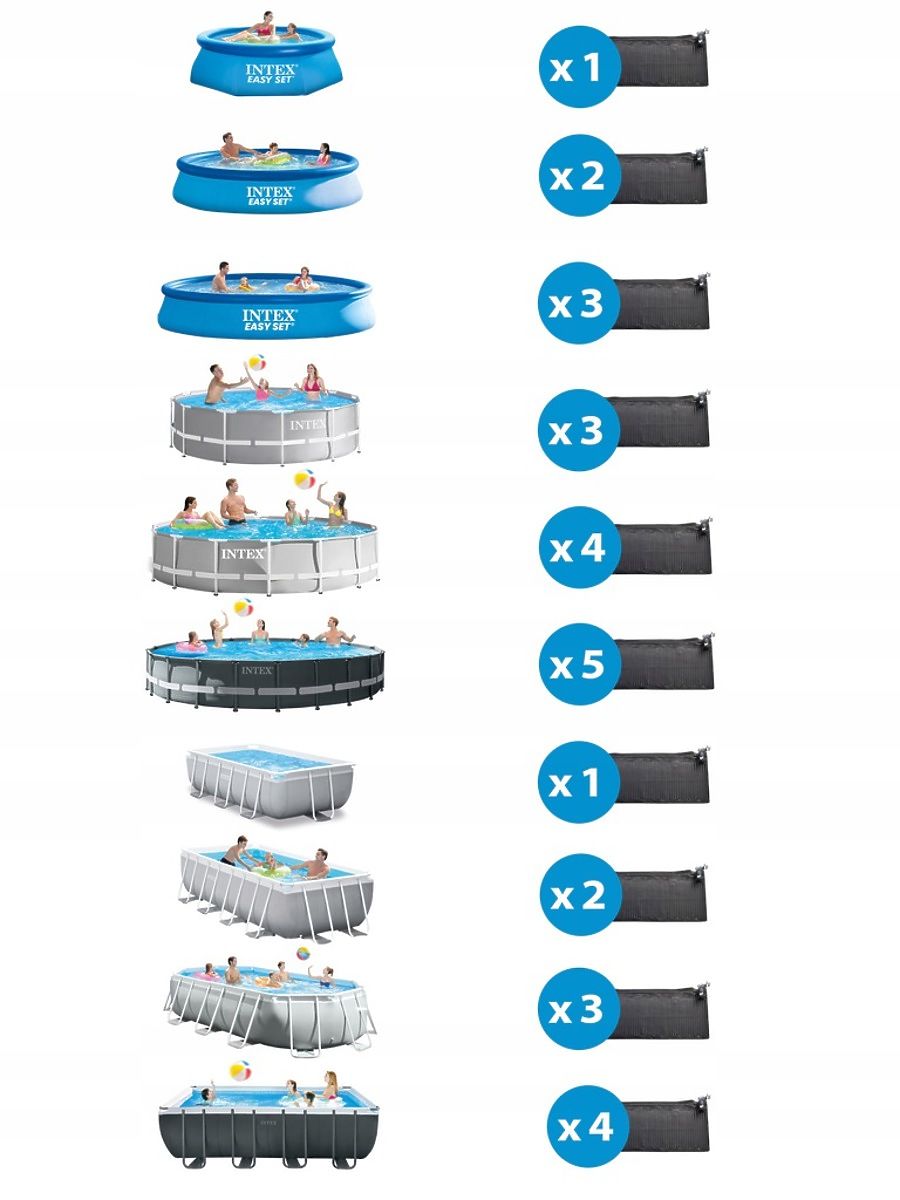

NUMBER OF MATS NEEDED FOR WATER HEATING Inflatable edge pool:

• 1 pc for pools with dimensions: 183x51 cm; 244x76 cm; 305x76 cm
• 2 pcs for pools with dimensions: 366x76 cm; 366x84 cm; 366x91 cm
• 3 pcs for pools with dimensions: 457x84 cm; 457x91 cm
• 4 pcs for pools with dimensions: 457x107 cm; 457x122 cm; 488x107 cm
• 5 pcs for pools with dimensions: 488x122 cm; 549x122 cm

Round frame pool:

• 2 pcs for pools with dimensions: 305x76 cm; 366x76 cm; 366x84 cm; 366x91 cm
• 3 pcs for pools with dimensions: 366x99 cm
• 4 pcs for pools with dimensions: 427x107 cm; 457x91 cm; 457x107 cm; 427x122 cm
• 5 pcs for pools with dimensions: 457x122 cm; 488x107 cm
• 6 pcs for pools with dimensions: 549x122 cm

Rectangular frame pool:

• 1 pc for pools with dimensions: 300x175x80 cm
• 2 pcs for pools with dimensions: 400x200x100 cm
• 3 pcs for pools with dimensions: 488x244x107 cm; 503x274x122 cm
• 4 pcs for pools with dimensions: 274x457x122 cm; 610x305x122 cm
• 5 pcs for pools with dimensions: 274x549x132 cm

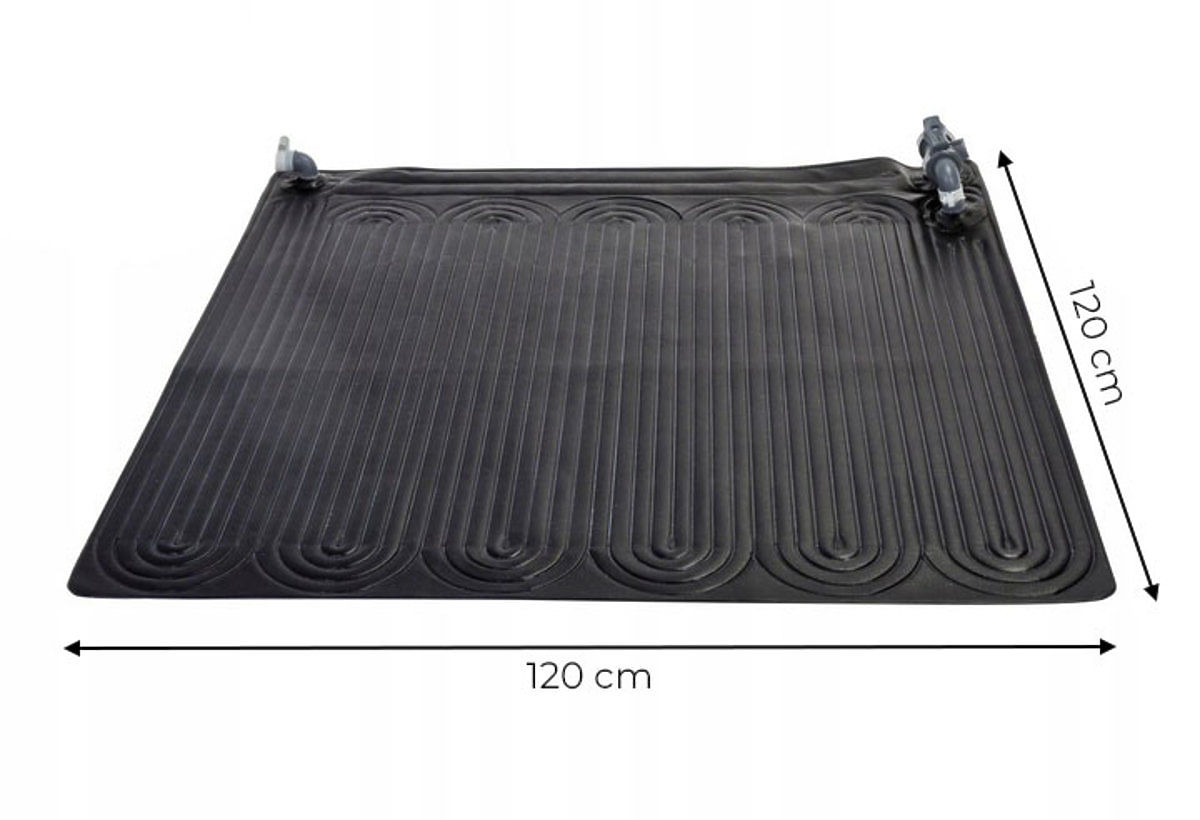

DIMENSIONS

• Length: 120 cm
• Width: 120 cm
• Hose diameter: 32 mm

SPECIFICATIONS

• Weight 3.70 kg
• Water heating: 3°C - 5°C
• Product code:28685
• Manufacturer: Intex
